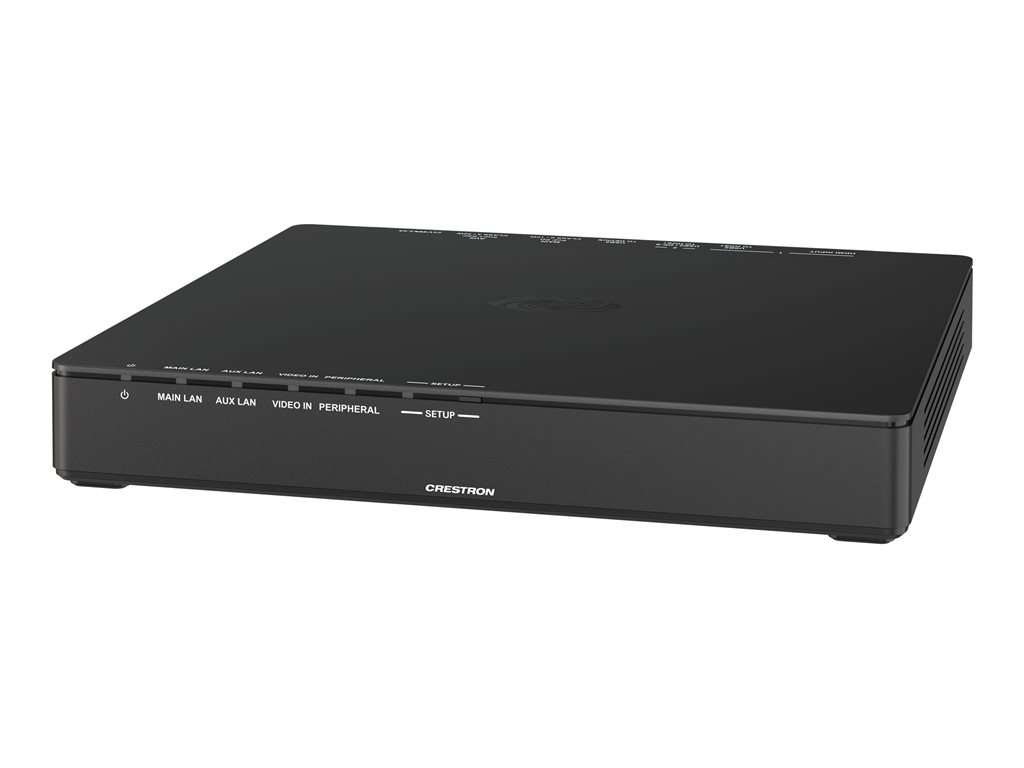

Crestron Electronics - Crestron AirMedia Series 3 AM-TX3-200
Wireless video/audio extender - transmitter - Wi-Fi 6, 802.11a, Wi-Fi 5, 802.11b/g/n, 1GbE - up to 75 ft
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Crestron AirMedia Series 3 AM-TX3-200 - wireless video/audio extender - Wi-Fi 6, 802.11a, Wi-Fi 5, 802.11b/g/n, 100Mb LAN, 1GbE |
| Device Type | Wireless video/audio extender (transmitter) |
| Form Factor | External |
| Data Link Protocol | Wi-Fi 6, 802.11a, Wi-Fi 5, 802.11b/g/n, 100Mb LAN, 1GbE |
| Max Transfer Distance | 75 ft |
| Power Over Ethernet (PoE) | PoE Passthrough / PoE+ |
| Power | AC 100-240 V - power adapter not included |
| Dimensions (WxDxH) | 7.9 in x 7.1 in x 1.2 in |
| Weight | 21.06 oz |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Wireless video/audio extender (transmitter) |
| Form Factor | External |
| Color | Black |
| Expansion / Connectivity | |
| Interfaces | 1 x HDMI input - 19 pin HDMI Type A ¦ 2 x USB 2.0 - Type C ¦ 1 x Ethernet 100Base-TX/1000Base-T (PoE+) - RJ-45 ¦ 1 x Ethernet 100Base-TX/1000Base-T (PoE) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EDID compatible, IEEE 802.3af Class 0, IEEE 802.3af Class 4, FCC Part 15 Class B |
| Networking | |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Wi-Fi 6, 802.11a, Wi-Fi 5, 802.11b/g/n, 100Mb LAN, 1GbE |
| Max Transfer Distance | 75 ft |
| Status Indicators | AUX, device, network, reset, setup, video |
| Features | LPCM support, DisplayPort Alternate mode, 4K resolution support |
| Compliant Standards | HDCP 1.4 |
| Power | |
| Power Over Ethernet (PoE) | PoE Passthrough / PoE+ |
| Power Device | External power adapter (not included) |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 45 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Dimensions & Weight | |
| Width | 7.9 in |
| Depth | 7.1 in |
| Height | 1.2 in |
| Weight | 21.06 oz |
