ViewSonic - Viewsonic TRS10

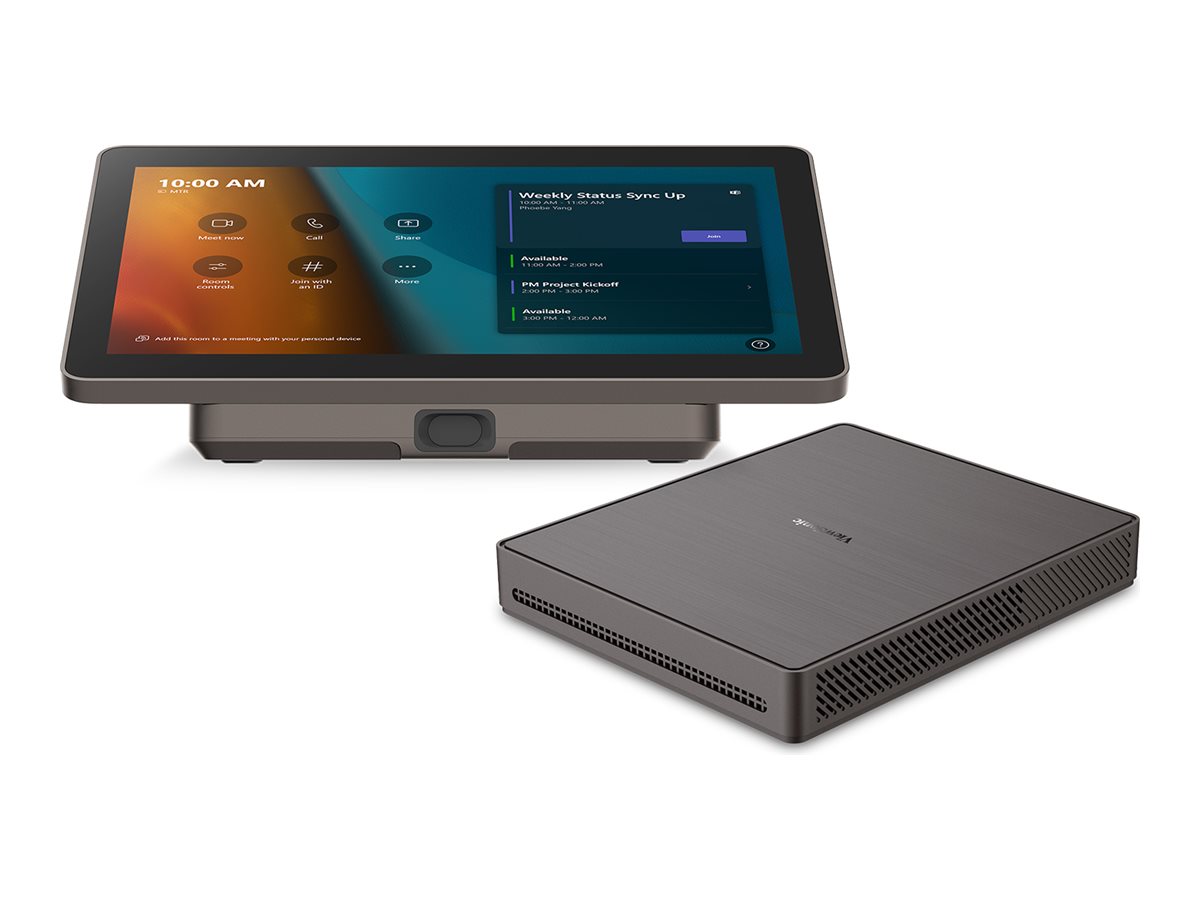

For Microsoft Teams Rooms - video conferencing kit (ViewSonic MPC310-W31-TU computing engine, ViewSonic MRC1010-TN touch console) - Certified for Microsoft Teams Rooms
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | Viewsonic TRS10 - for Microsoft Teams Rooms - video conferencing kit |
| Device Type | Video conferencing kit |
| Kit Content | ViewSonic MPC310-W31-TU computing engine, ViewSonic MRC1010-TN touch console |
| Display | 10.1" 1920 x 1200 |
| Input Device | 10.1" touchscreen (wired) |
| PC Configuration | Core i3-1220P, 8GB RAM, 128GB SSD |
| Networking | Network adapter - Gigabit Ethernet, Bluetooth 5.3 |
| Power | AC 100-240 V (50/60 Hz) |
| Software Certification | Certified for Microsoft Teams Rooms |
| System Requirements | Windows 11 IoT Enterprise |
| Manufacturer Warranty | 3-year warranty |
| General | |
| Device Type | Video conferencing kit |
| Kit Content | ViewSonic MPC310-W31-TU computing engine, ViewSonic MRC1010-TN touch console |
| Dimensions & Weight Details | Compute system - Width 9.1 in Depth 10.8 in Height 1.7 in Weight 4.1 lbs ¦ Touch screen - Width 9.6 in Depth 3.9 in Height 6.3 in Weight 32.8 oz |
| Built-in Devices | Presence sensor, motion sensor, antenna |
| Expansion / Connectivity | |
| Expansion Slots | M.2 (SATA) |
| Interfaces | 1 x headset ¦ 1 x USB 2.0 - 9 pin USB Type A ¦ 3 x USB-C 3.0 - 24 pin USB-C ¦ 1 x USB-C / DisplayPort - 24 pin USB-C ¦ 1 x network / power - 10/100/1G Ethernet - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x display / video - 19 pin HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years |
| Miscellaneous | |
| Software Certification | Certified for Microsoft Teams Rooms |
| Networking | |
| Type | Network adapter |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | Gigabit Ethernet, Bluetooth 5.3 |
| Features | Cable management |
| Compliant Standards | Bluetooth 5.3 |
| Power | |
| Power Device | Power supply - internal |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Windows 11 IoT Enterprise |
| OS Required | Windows 11 IoT Enterprise |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH |
| Input Device | |
| Type | 10.1" touchscreen |
| Connectivity Technology | Wired |
| Features | 1920 x 1200 resolution, LED backlight, multi-touch, security slot (Kensington security lock compatible) |
| Display | |
| Diagonal Size | 10.1" |
| Native Resolution | 1920 x 1200 |
| Image Brightness | 300 cd/m² |
| Color Gamut | 72% NTSC |
| Monitor Features | LED-backlit, capacitive touch screen, 10-point multi-touch, 25 ms touch down latency, anti-glare, edge-lit LED backlight |
| Video Input | |
| Features | TPM 2.0 module |
| Video Output | |
| PC Configuration | Core i3-1220P, 8GB RAM, 128GB SSD |
