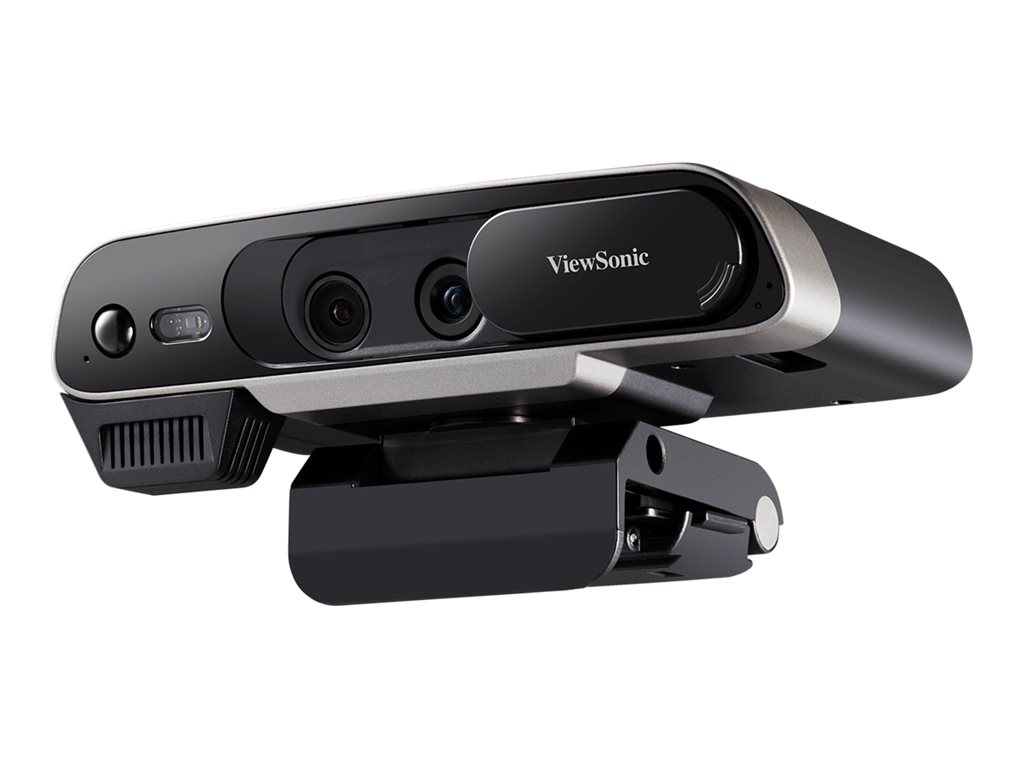

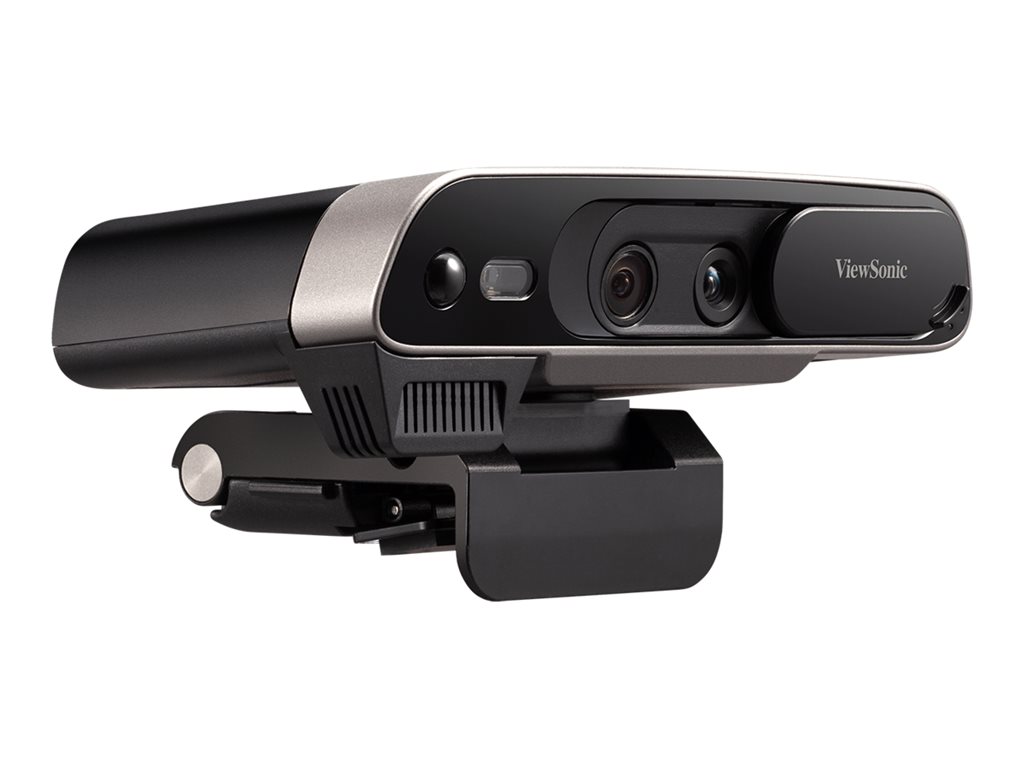

ViewSonic - ViewSonic VBC100
Conference camera - color - 8.5 MP - 3840 x 2160 - fixed focal - audio - HDMI - USB-C - MJPEG, H.264 - AC 120/230 V - DC 12 V
Product Description
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic VBC100 - conference camera |
| Device Type | Conference camera |
| Audio | Yes: built-in two microphones |
| Dimensions (WxDxH) | 6.2 in x 2.8 in x 4 in |
| Weight | 10.76 oz |
| Connectivity Technology | Wired |
| Camera | Color |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 720p, 1080p, 4K |
| Optical Sensor Type | CMOS - 1/2.5" - 8.5 MP |
| Focal Length Control | Fixed focal |
| Focus Adjustment | (min distance 6.6 ft) |
| Lens Iris | F/2.0 |
| Interfaces | USB-C, HDMI |
| Cables Included | 1 - USB-C to USB-A cable - external - 6 ft ¦ 1 - USB-C 3.1 cable - external - 6 ft |
| Voltage | AC 120/230 V DC 12 V |
| Features | Progressive scanning |
| Environmental Parameters (operating) | 14 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes: built-in two microphones |
| Connectivity Technology | Wired |
| Width | 6.2 in |
| Depth | 2.8 in |
| Height | 4 in |
| Weight | 10.76 oz |
| Expansion / Connectivity | |

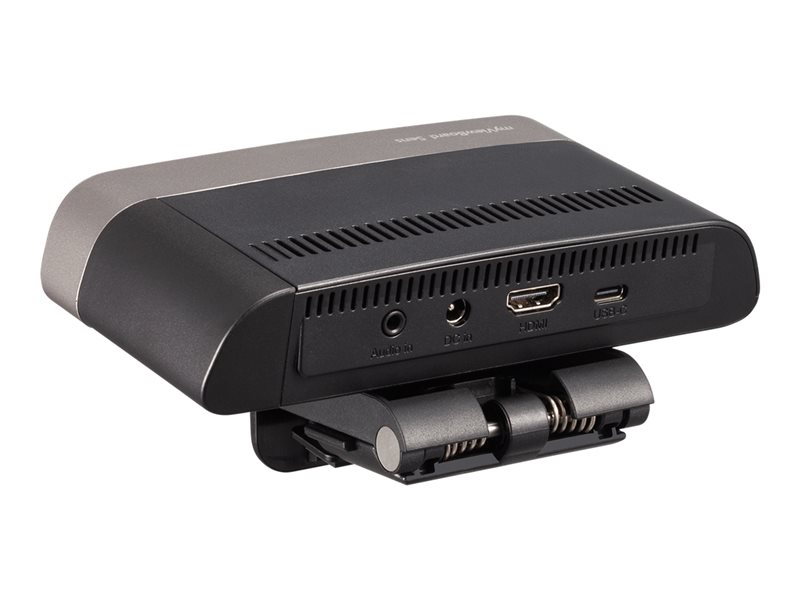

| Ports | Audio line in - 3.5 mm jack ¦ HDMI output ¦ USB-C |
| Miscellaneous | |
| Cables Included | 1 x USB-C to USB-A cable - external - 6 ft ¦ 1 x USB-C 3.1 cable - external - 6 ft |
| Compliant Standards | EMC, FCC, EN 62368-1 |
| Power | |
| Power Requirements | AC 120/230 V - DC 12 V - 2 A |
| Software / System Requirements | |
| OS Required | Windows 10 |
| Environmental Parameters | |
| Min Operating Temperature | 14 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color |
| Digital Video Format | MJPEG, H.264 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 720p, 1080p, 4K |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| RAM | 4 GB |
| Flash Memory | 4 GB |
| Features | Progressive scanning |
| Lens Construction | |
| Type | Fixed focal |
| Lens Iris | F/2.0 |
| Min Focus Distance | 6.6 ft |
| Horizontal Field of View (degree) | 50.2 - 123.1 |
| Vertical Field of View (degree) | 27.5 - 65.1 |
| Diagonal Field of View (degree) | 58.4 - 146.6 |
| Image Sensor | |
| Type | 8.5 MP CMOS 1/2.5" |
| Interfaces | |
| Video | HDMI |
| Computer Interface | USB-C |
