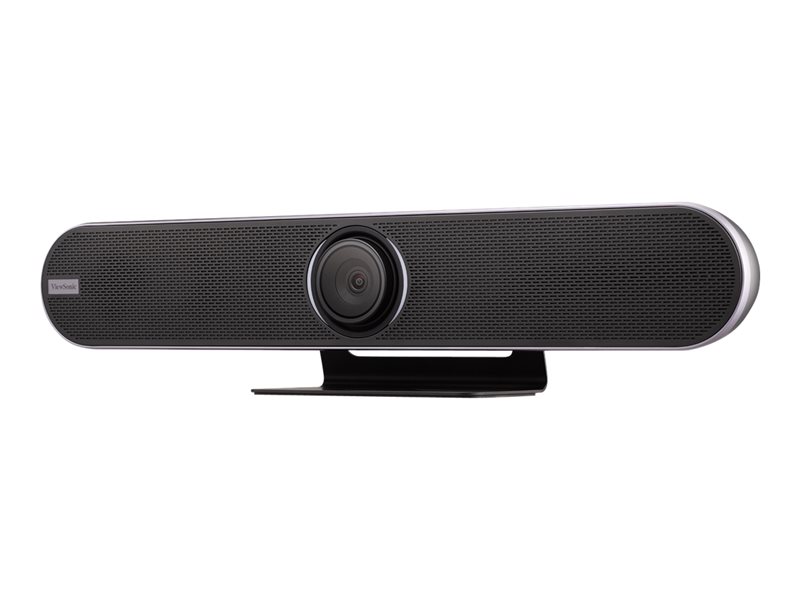

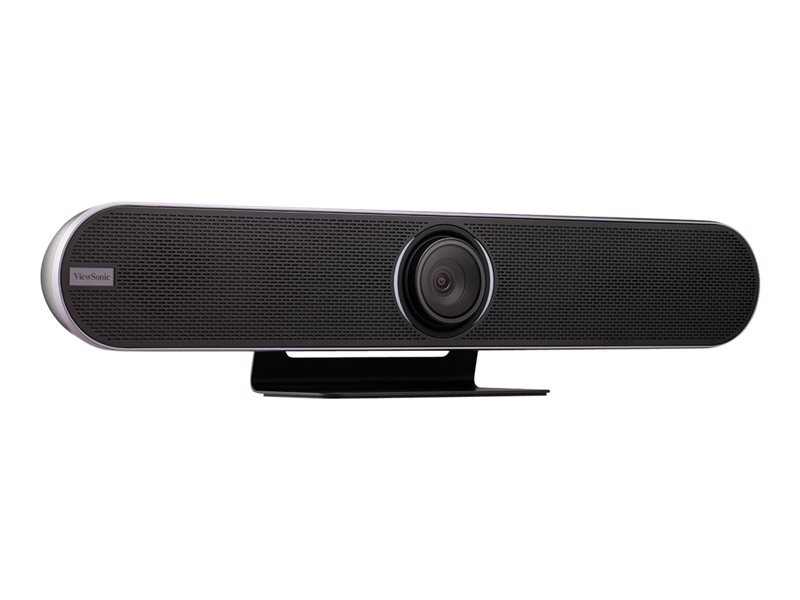

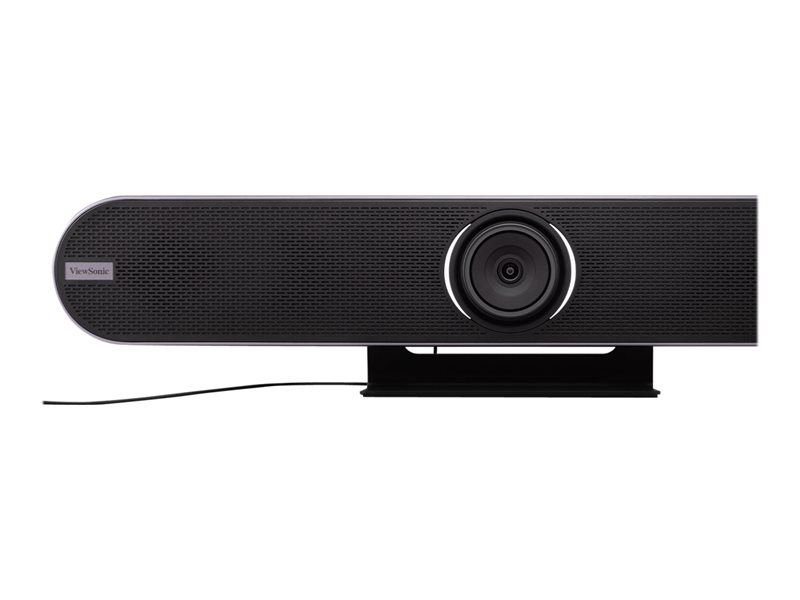

ViewSonic - ViewSonic VB-CAM-201
Conference camera - PTZ - color - 8.5 MP - 3840 x 2160 - audio - wireless - Bluetooth 5.0, LAN - USB 2.0 / USB-C - H.264, MJPEG, YUY2, NV12
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | ViewSonic VB-CAM-201 - conference camera |
| Device Type | Conference camera - pan / tilt / zoom |
| Audio | Yes: beam-forming microphone array, built-in speaker |

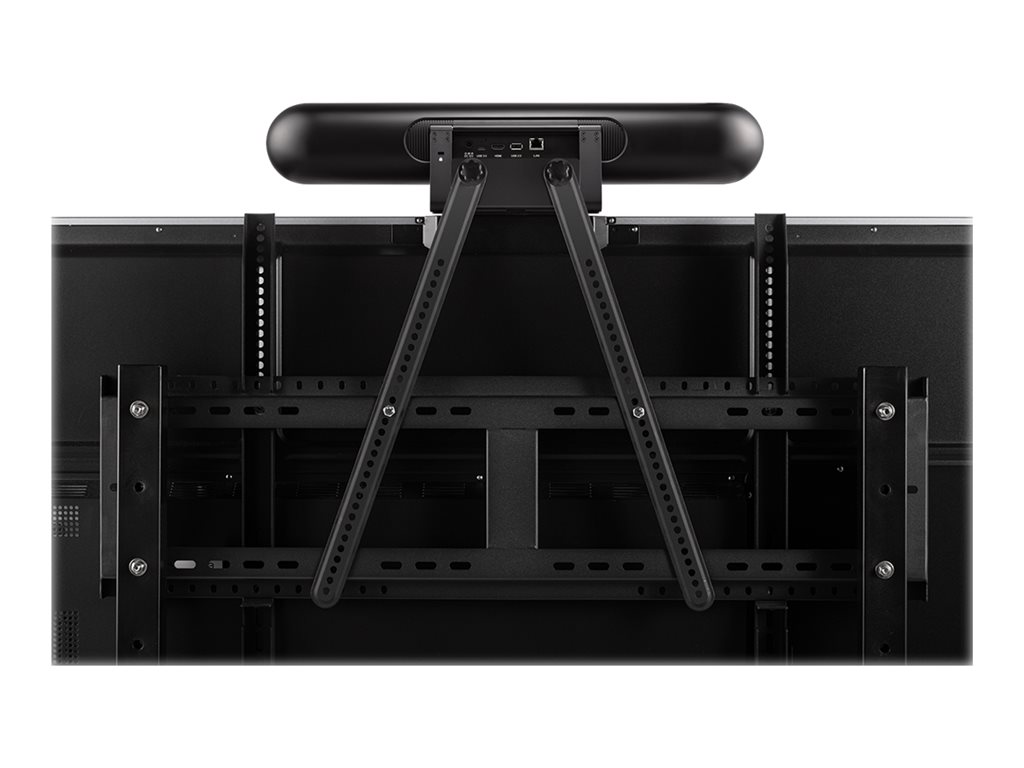

| Camera Mount Type | Table mount, wall mount, surface mount |
| Dimensions (WxDxH) | 23.6 in x 5.3 in x 4.5 in |
| Weight | 4.85 lbs |
| Connectivity Technology | Wired, wireless |
| Camera | Color |
| Max Resolution | 3840 x 2160 |
| Frame Rate (max) | 60 frames per second |
| Video Modes | 4K/30p, 1080/60p, 1080/30p, 720/60p, 720/30p |
| Optical Sensor Type | CMOS - 1/2.5" - 8.5 MP |
| Panning Range (degree) | -15 to +15 |
| Tilting Range (degree) | -15 to +15 |
| Interfaces | USB 2.0 / USB-C Bluetooth 5.0, LAN |
| Cables Included | 1 - USB-C cable |
| Voltage | 12 V |
| Features | Acoustic Echo Cancellation (AEC), noise reduction, auto gain control, 120° horizontal field of view (ultra-wide camera), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 120° diagonal field of view, 110° field of view (horizontal), ePTZ, voice tracking, 6m identify distance |
| Manufacturer Warranty | 1-year warranty |
| Environmental Parameters (operating) | 32 °F - 104 °F; 20 - 90% (non-condensing) relative humidity |
| General | |
| Device Type | Conference camera |
| Audio Support | Yes: beam-forming microphone array, built-in speaker |
| Camera Mount Type | Table mount, wall mount, surface mount |
| Connectivity Technology | Wired, wireless |
| Width | 23.6 in |
| Depth | 5.3 in |
| Height | 4.5 in |
| Weight | 4.85 lbs |
| Expansion / Connectivity | |

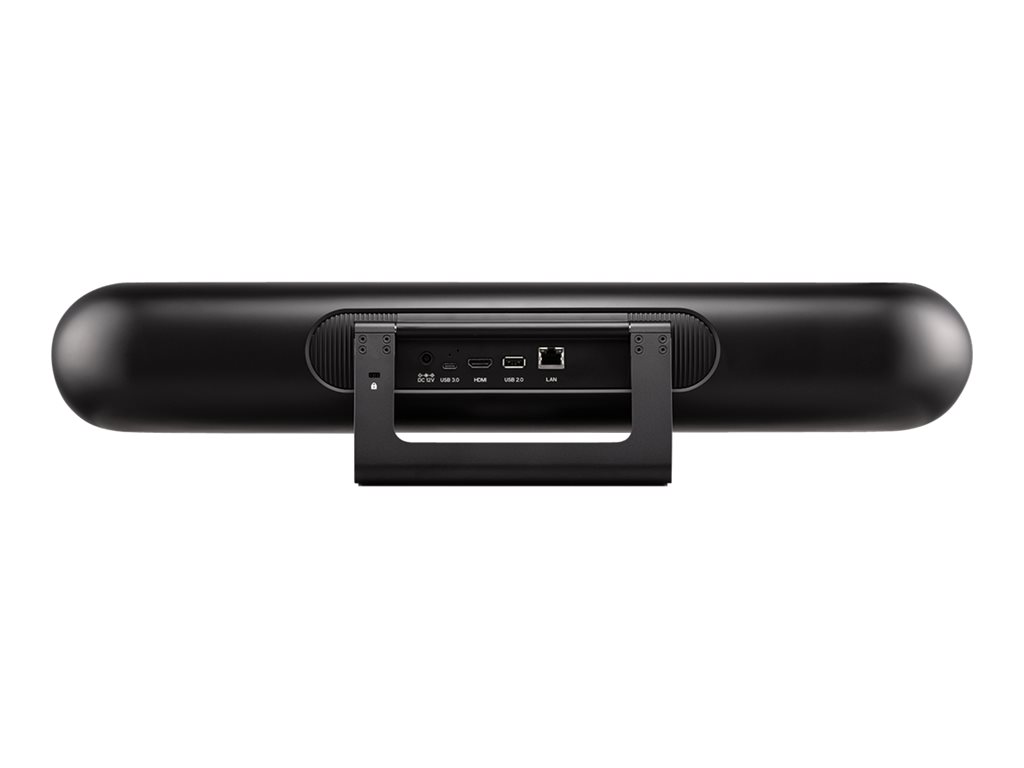

| Ports | USB 2.0 - 4 pin USB Type A ¦ USB 3.0 - Type C ¦ HDMI output - HDMI Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year |
| Miscellaneous | |

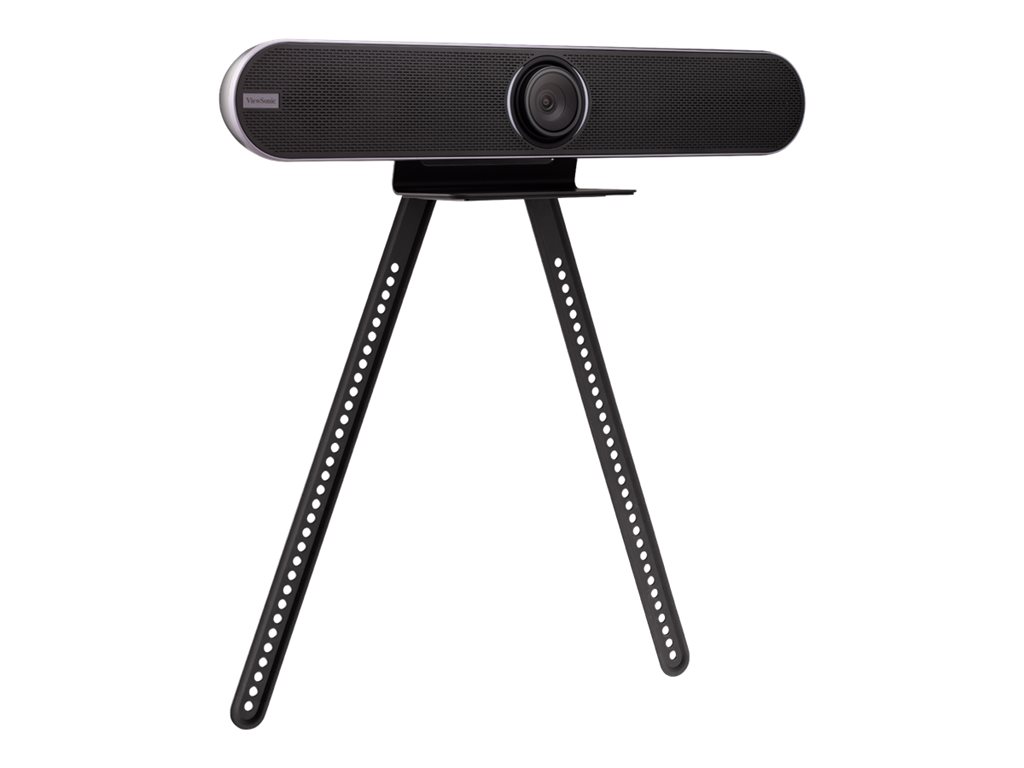

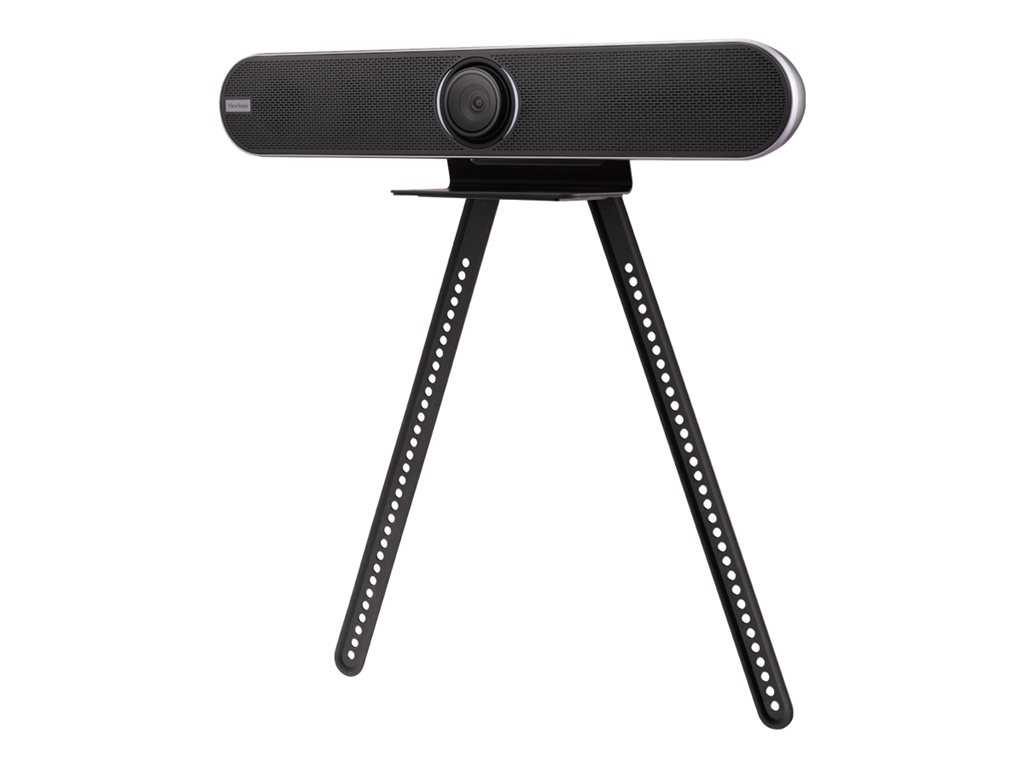

| Included Accessories | Remote control, mounting bracket, 6 screws, 6 wall anchors |
| Cables Included | 1 x USB-C cable |
| Compliant Standards | Plug and Play, FCC, FCC-ID, IC ID, LVD |
| Power | |
| Power Device | Power adapter - external 12 V 18 Watt |
| Software / System Requirements | |
| OS Required | Windows 10, Windows 8.1, Microsoft Windows 7, Apple macOS 10.10 or later, Linux |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Camera | |
| Type | Color - pan / tilt / zoom |
| Digital Video Format | H.264, MJPEG, YUY2, NV12 |
| Max Digital Video Resolution | 3840 x 2160 |
| Video Modes | 4K/30p, 1080/60p, 1080/30p, 720/60p, 720/30p |
| Digital Zoom | 5 |
| Frame Rate (max) | 60 frames per second |
| Features | Acoustic Echo Cancellation (AEC), noise reduction, auto gain control, 120° horizontal field of view (ultra-wide camera), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 120° diagonal field of view, 110° field of view (horizontal), ePTZ, voice tracking, 6m identify distance |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 26.5 in |
| Shipping Depth | 19 in |
| Shipping Height | 18.7 in |
| Shipping Weight | 10.71 lbs |
| Image Sensor | |
| Type | 8.5 MP CMOS 1/2.5" |
| Interfaces | |
| Network Interface | Bluetooth 5.0, LAN |
| Computer Interface | USB 2.0 / USB-C |
| Panning | |
| Range (degree) | -15 to +15 |
| Tilting | |
| Range (degree) | -15 to +15 |
