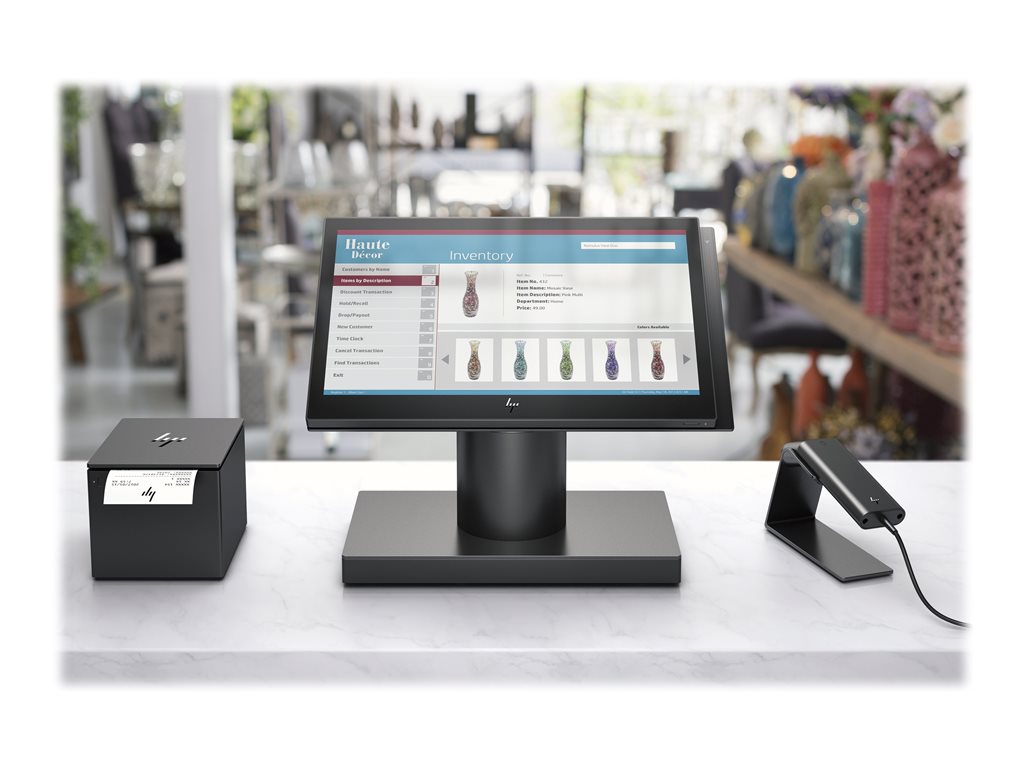

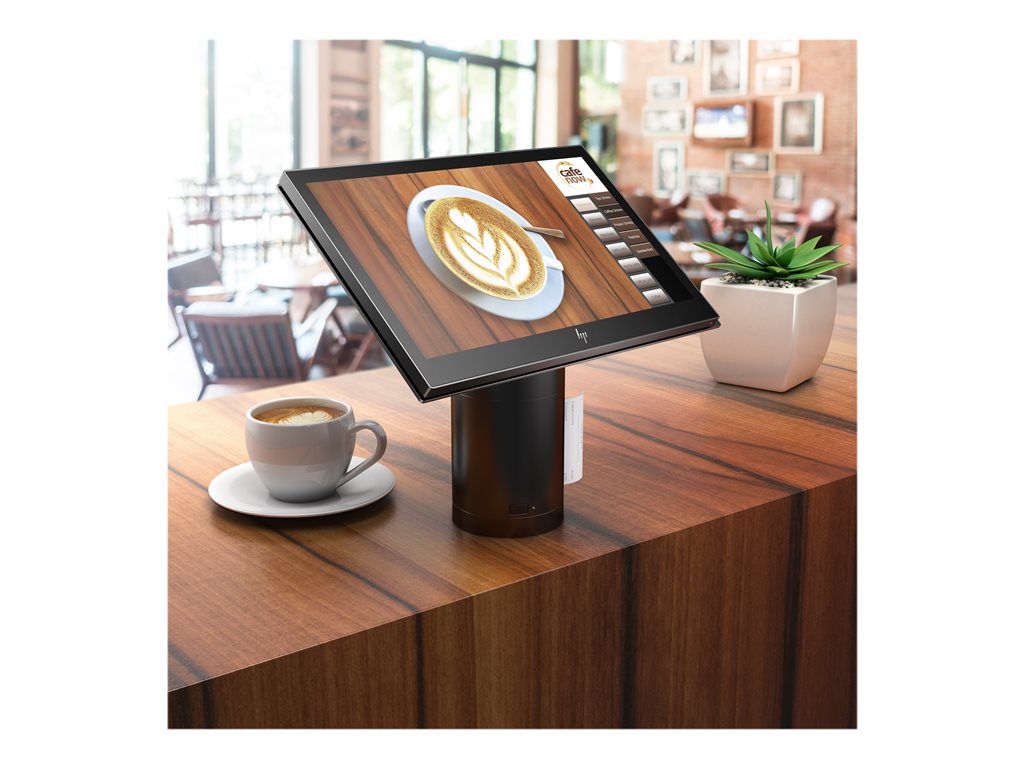

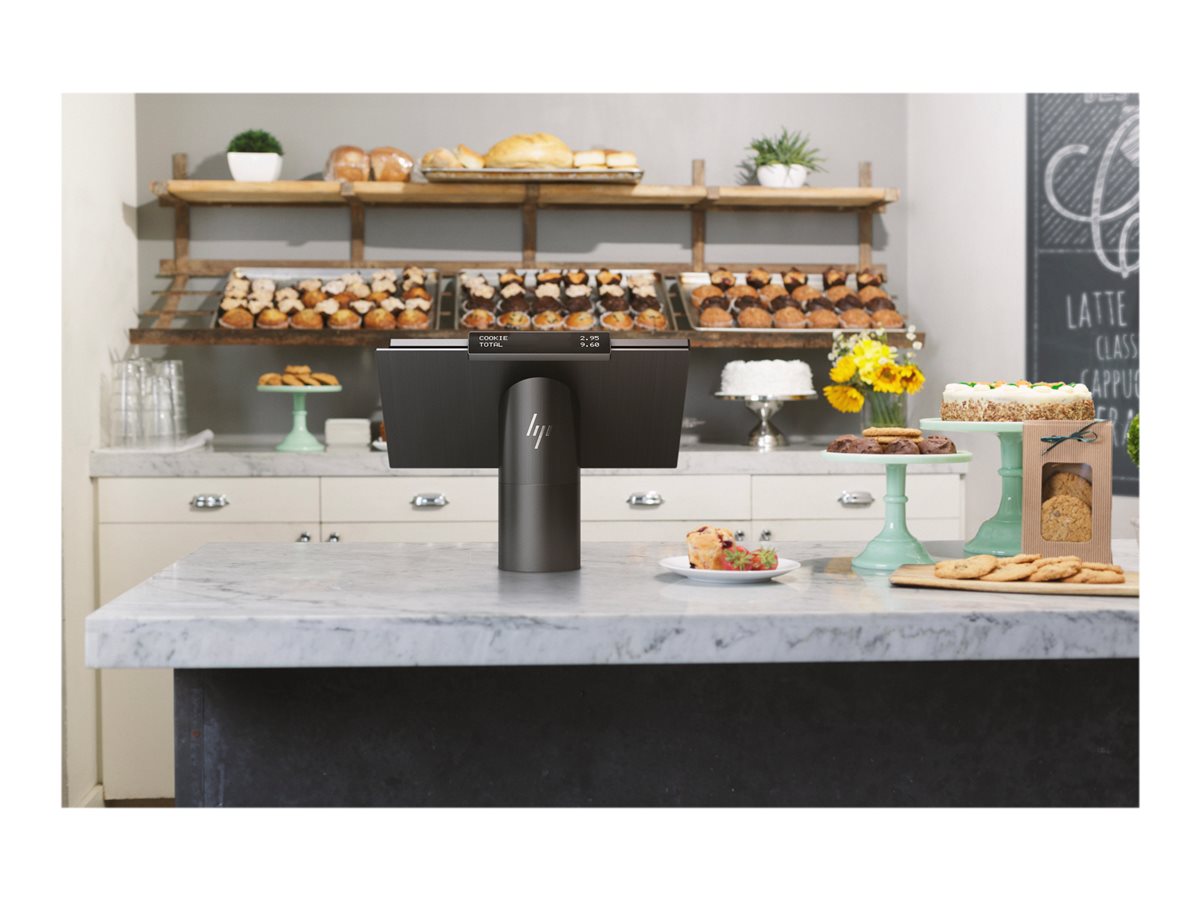

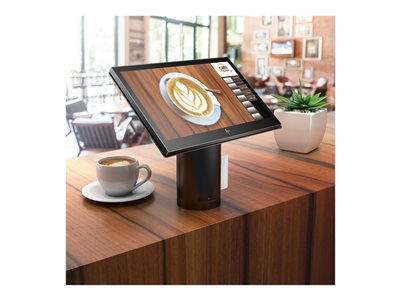

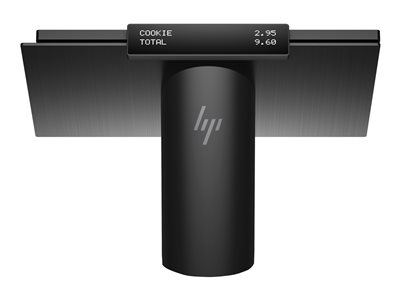

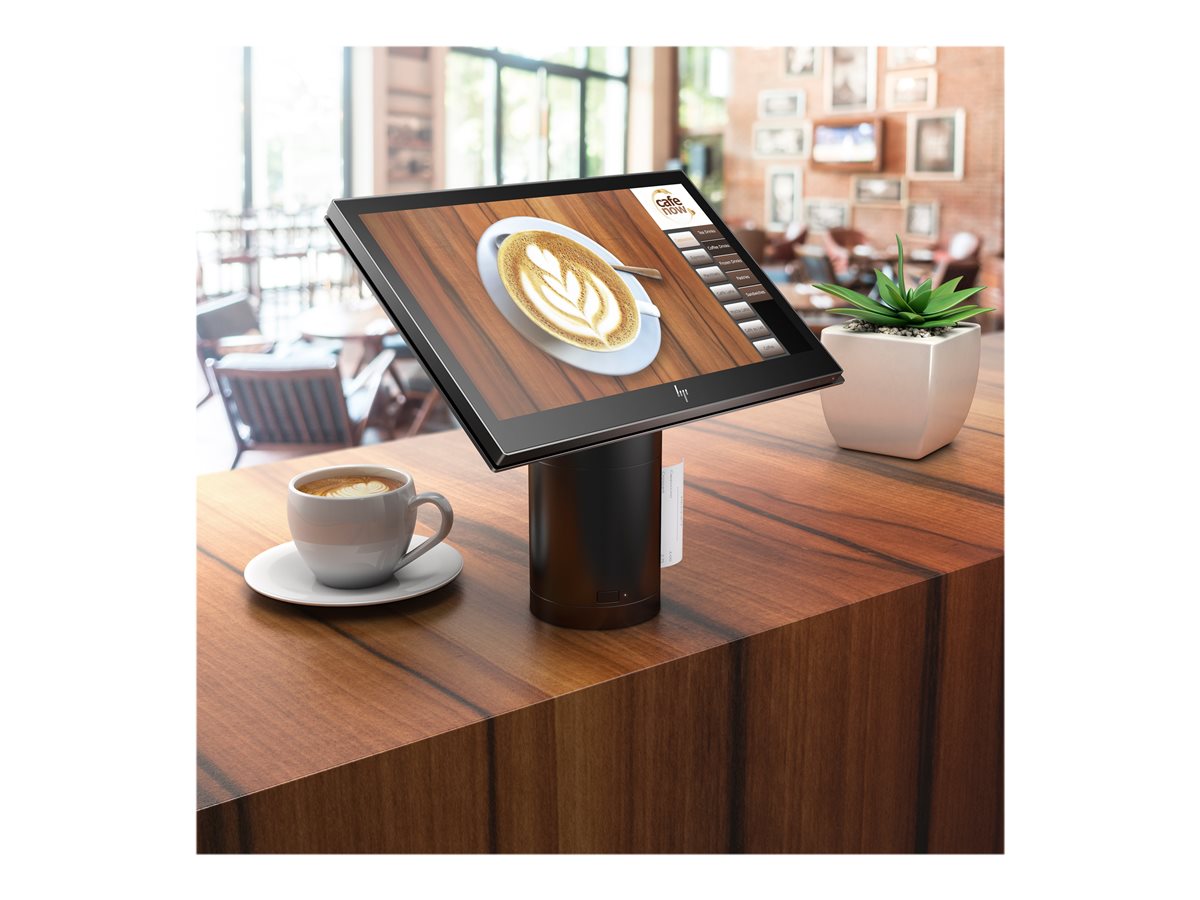

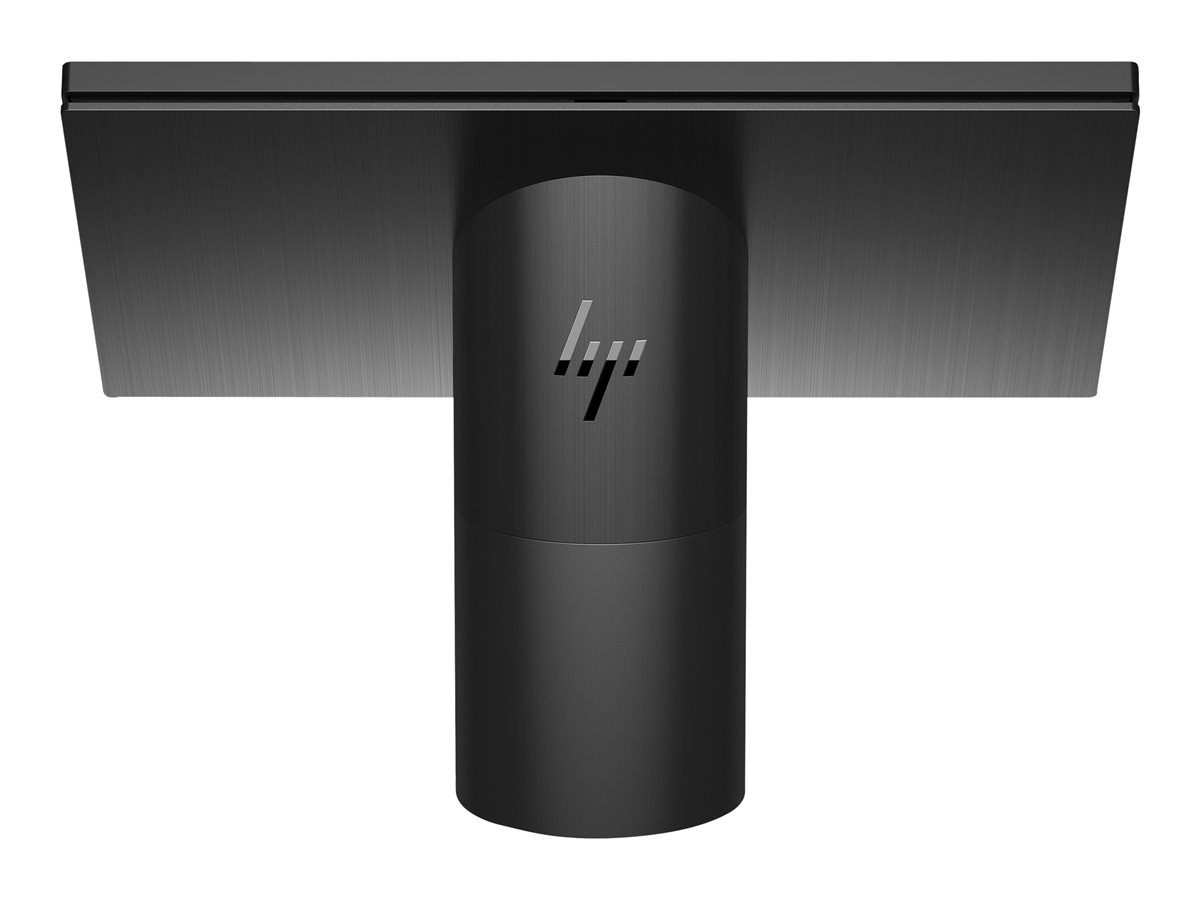

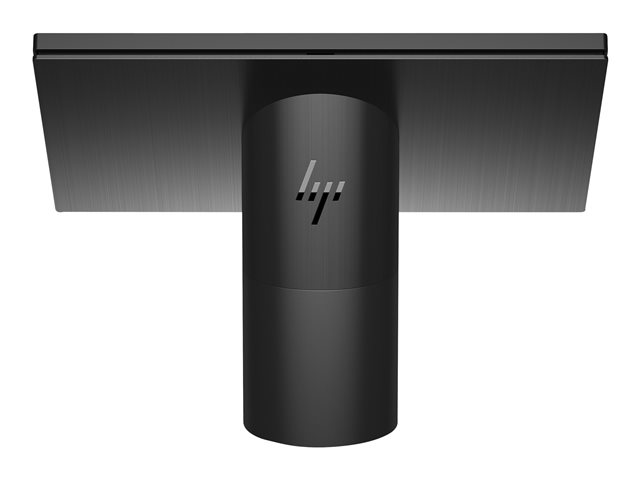

HP Inc. - HP ElitePOS G1 Retail System 143

All-in-one - 1 x Core i3 7100U / 2.4 GHz - RAM 4 GB - SSD 128 GB - 3D V-NAND technology, TLC - HD Graphics 620 - Gigabit Ethernet WLAN: - 802.11a/b/g/n, Bluetooth 4.0 - Win 10 Pro 64-bit - monitor: LED 14" 1920 x 1080 (Full HD) touchscreen

HP Inc.
3DV83UA#ABA
0192018568372
N/A
New

Price: CALL

MSRP: $2,249.00
Out of Stock

Product Description

Additional Details

What's Included

Specifications

Main Specifications
Product Description HP ElitePOS G1 Retail System 143 - all-in-one - Core i3 7100U 2.4 GHz - 4 GB - SSD 128 GB - LED 14"
Type Point of sale terminal - all-in-one
Localization Language: English / region: United States
Processor 1 x Intel Core i3 (7th Gen) 7100U / 2.4 GHz (Dual-Core)
Cache Memory 3 MB
Cache Per Processor 3 MB
RAM 4 GB (installed) / 32 GB (max) - DDR4 SDRAM - non-ECC - PC4-19200
Storage Controller SATA (SATA 6Gb/s)
Hard Drive SSD 128 GB - SATA 6Gb/s - M.2 2280 - 3D V-NAND technology, triple-level cell (TLC)
Optical Storage No optical drive
Card Reader Yes
Monitor 14" - LED - 1920 x 1080 (Full HD) - 16:9 - touchscreen
Graphics Controller Intel HD Graphics 620
Audio Output Stereo
Networking 1GbE, 802.11a, 802.11b/g/n, Bluetooth 4.0
Power AC 120/230 V (50/60 Hz)
OS Provided Windows 10 Pro 64-bit Edition
Image Color Disclaimer The displayed product image may be a different color
Dimensions (WxDxH) 13.2 in x 8.5 in x 0.7 in
Weight 3.04 lbs
Manufacturer Warranty Limited warranty - parts and labor - 3 years - on-site
General
Type Point of sale terminal
Product Form Factor All-in-one - with Rotate/Tilt Stand
Built-in Devices Speaker
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Image Color Disclaimer The displayed product image may be a different color
Localization Language: English / region: United States
Expansion / Connectivity
Slots 1 (total) / 0 (free) x M.2 Card - 2230 ¦ 1 (total) / 0 (free) x M.2 Card - 2280
Interfaces 4 x USB 3.0 ¦ 1 x PoweredUSB 2.0 (24 V) ¦ 2 x serial (powered) ¦ 2 x USB-C (one of them is power port) ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x cash drawer ¦ 1 x headphones/microphone ¦ 2 x PoweredUSB 2.0 (12 V)
Manufacturer Warranty
Service & Support Limited warranty - parts and labor - 3 years - on-site
Miscellaneous
Included Accessories HP ElitePOS Rotate/Tilt Stand with Stability Base Plate, HP ElitePOS Retail Advanced I/O Base
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Security Slot Type Kensington security slot
Compliant Standards WEEE 2002/96/EC, low halogen, RoHS 2011/65/EC
RAM
Installed Size 4 GB / 32 GB (max)
Technology DDR4 SDRAM - non-ECC
Effective Memory Speed 2133 MHz
Rated Memory Speed 2400 MHz
Memory Specification Compliance PC4-19200
Form Factor SO-DIMM 260-pin
Slots 2 (total) / 1 (empty)
Configuration Features 1 x 4 GB
Networking
Interface (Bus) Type PCI Express Mini Card (M.2)
Ethernet Controller Realtek RTL8153
Wireless LAN Supported Yes
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0
Remote Management Protocol SNMP 2
Features Wake on LAN (WoL), ACPI support, PXE support, auto-uplink (auto MDI/MDI-X)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3x, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az, Bluetooth 4.0
Power
Device Type Power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 180 Watt
Efficiency 89%
Power Factor Correction Yes (active)
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 104 °F
Humidity Range Operating 20 - 85%
Storage Controller
Type 1 x SATA
Controller Interface Type SATA 6Gb/s
Cache Memory
Installed Size 3 MB
Cache Per Processor 3 MB
Optical Storage
Type No optical drive
Monitor
Monitor Type LED
Touchscreen Yes (multi-touch)
Diagonal Size 14"
Native Resolution 1920 x 1080 (Full HD)
Widescreen Display Yes
Image Aspect Ratio 16:9
Horizontal Viewing Angle 178
Vertical Viewing Angle 178
Pixel Pitch 0.161 mm
Response Time 25 ms
Image Brightness 500 cd/m²
Image Contrast Ratio 800:1
Monitor Features Projected Capacitive Touch (PCT) technology, Full HD ultra wide-viewing angle (UWVA) anti-glare
Graphics Controller
Graphics Processor Intel HD Graphics 620
Audio Output
Sound Output Mode Stereo
Max Sampling Rate 192 kHz
Compliant Standards High Definition Audio
Speakers Included 1 x amplifier ¦ 2 x right / left channel
Operating System / Software
OS Provided Windows 10 Pro 64-bit Edition English
Hard Drive
Type SSD - M.2 2280
Capacity 1 x 128 GB
Interface Type SATA 6Gb/s
Features 3D V-NAND technology, triple-level cell (TLC)
Dimensions & Weight
Dimensions & Weight Details 13.2 in - 8.5 in - 0.7 in - without stand ¦ 3.8 in - 3.8 in - 8.7 in - 2.9 lbs - stand
Width 13.2 in
Depth 8.5 in
Height 0.7 in
Weight 3.04 lbs
Dimensions & Weight (Shipping)
Shipping Width 19.5 in
Shipping Depth 11.6 in
Shipping Height 17.8 in
Shipping Weight 15.87 lbs
Card Reader
Type Card reader
Supported Flash Memory Cards microSD
Processor / Chipset
CPU Intel Core i3 (7th Gen) 7100U
Clock Speed 2.4 GHz
Number of Cores Dual-Core
CPU Qty 1
Max CPU Qty 1
CPU Upgradability Not upgradable
